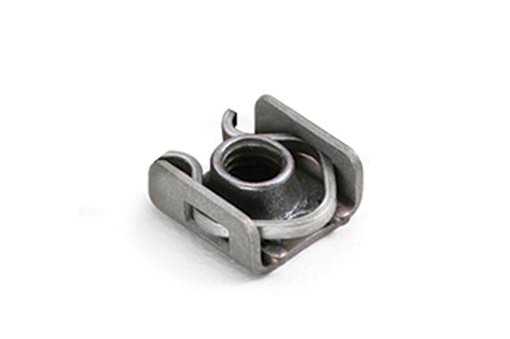

CB3503CR4-1

Nutplate, No Lug, High Reuse

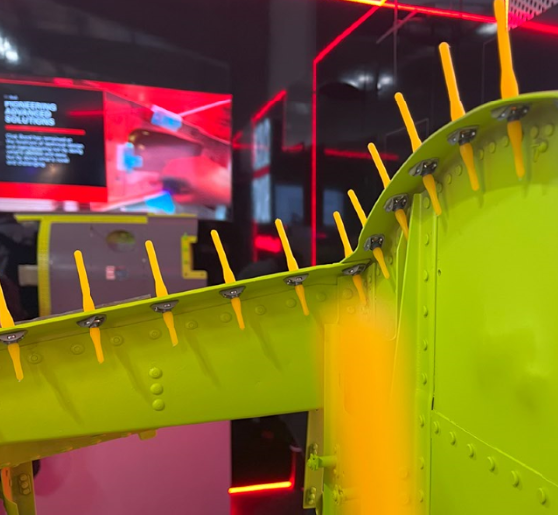

Supplied with integral elastic installation fixture. Fixture simplifies nutplate installation by providing bond line clamp-up and maintenance of concentricity with the fastener hole, ensuring full availability of nut float and protection of threads from adhesive. FEATURES: Thread lock performance and nutplate strength per NASM25027 or ISO5858 and thread form compliant with AS8879 or ISO5855. Non-locking, high-reuse, and copper-plated nut elements optionally available. APPLICATIONS Decking & Floorboards Equipment Attachment Fairings Fuel & Fluid Tanks Interiors Panels Structural Components Systems Attachment
